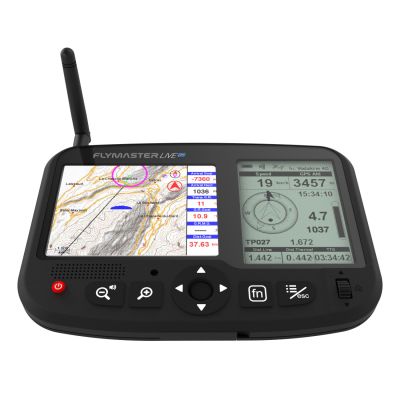

Flymaster Live DS

- 6%
Flymaster Live DS
Flymaster Live DS
1,199.00€ * UVP 1,279.00€ * (6.25% Saved)

Prices incl. VAT plus shipping costs

Free of shipping costs 1

Delivery time 1-2 days 2

Availability: Only 1 Item in stock
Planned delivery Tuesday, 16.07.2024
Order until 15.07.2024 - 12:30 clock this and other products.
  • A11415
The most complete free-flying instrument ever created. For the most demanding pilot, focused on... more

The most complete free-flying instrument ever created. For the most demanding pilot, focused on winning, whether in competition or cross-country.


Interface Features

User definable pages (each page can be draw using Flymaster Instrument Manager, and include a number of elements only limited by space). 8 page sets
Configurable graphical elements (depending of the element several parameters can be set by the user ex. Size, Border, Color, ...) 15
Configurable data field elements (User can change size, border, title, Font, Color, ...) 85
Page Trigger Events (page switches automatically if a specific event occurs)
  • Airspace warning
  • Entering thermal
  • Transition (leaving thermal)
  • Arriving at turn point
  • Start opened
  • Power up
Interface language English
Configurable voice alerts
  • Airspace
  • Turn point complete
  • Start opened
  • Goal Possible
  • Distances
  • Countdown time

Variometer / Höhenmesser-Funktionen

  • Buzzer/near thermal sound
  • Ultra sensitive Variometer with 10 readings per second and 10 cm resolution
  • Configurable vario digital filter and integration values
  • Fully configurable Vario Sound (frequency, increments, frequency/vertical speed relation,….)
  • Adjustable Sound Levels
  • Automatic mute, keeps vario silent until takeoff
  • Altitude adjustment using QNH
  • Automatic altitude adjustment from GPS
  • 2 independent altimeters


  • 3D flight logger IGC format

3D Airspace

  • Display of restricted areas in map
  • Adjustable voice warning of vertical distance to a restricted area
  • Adjustable voice warning of horizontal distance to a restricted area
  • Display of shortest vertical, and horizontal distance to restricted area
  • Restricted area voice alarms (Altitude imminent, Position imminent, Violation, …)
  • Critical Airspace page (displays information about areas that are closer than a defined distance)
  • Airspaces browser
  • Worldwide Airspace database


  • Detailed colored maps with topographic data
  • With configurable layers

Cross Country Features

  • Exclusive Thermal Ball indicator
  • Several specific data fields like distance to take off, current and average glide ratio, average speed, etc.
  • Distance to last thermal indexed with altitude
  • Goto waypoint
  • Multiple waypoint route
  • Wind Speed and Direction (GPS based calculations)
  • Automatic altitude gain profiler
  • Nearby Landings (displays required glide ratio and distance to all the landings which can be reached)

Competition Features

  • Route Optimization (indication for shortest route point)
  • Speed to Start (optimal speed to make the start)
  • Arriving altitude at next waypoint and goal (considering wind)
  • Several Glide Ratios (to goal, average, to next,…)
  • Easy task definition
  • Task Navigation, configurable safety/risk margin on turn points.
  • Task Map (trace with thermal indication)

Live Tracking

  • Upload of flight data to repositories using the GSM network (compatible with several repositories like Leonardo XC server, XContest, DHV)
  • Automatic almost real time flight data sending to a remote live tracking server through GSM network. (compatible with several servers like Flymaster, LiveTrack24, DHV, etc)
  • On demand sending of predefined messages to a server (eg. Need Assistance, Need Retrieval, etc)
  • Automatic data receiving from a remote server like alarm messages, task definition, etc
  • Small LTE-M/GPRS data usage (considering that communication is not lost, in average, requires 25KB per flight/hour)


Kompatibel mit MacOS (10.13 and higher), Windows (7/8/10)

Technical data
Display Type Dual-screen - Reflective color (640x480) and reflective greyscale (320x240)
Battery Capacity (Lithium-Ion) 9000 mAh
Autonomy Learn more Usually more than 24h
Size 186x132x18 mm
Weight 410 g
GPS 72 channel U-blox BeiDou, Galileo, GLONASS, GPS / QZSS
Native USB Connection USB Type-C Mass Storage Access
Battery Charging From wall adapter or standard usb port
GSM Global Multi-band LTE-M
Bluetooth Bluetooth 5 low energy module
Flarm Flarm ready (optional Flarm Aware RX + TX mode)
Micro SD Supports cards up to 256 GB
6 Axis accelerometer and magnetometer Allows 6-degrees of freedom Tilt-compensated Compass)
Firmware update by USB (upgrades are free)
Additional Article Information
Article no. A11415
Manufacturer Flymaster
Article weight 0.4 kg
Scope of Delivery
  • Flymaster Live DS
  • Micro-SD Card 128 GB
  • Hardcase Box
  • USB- cabel
  • charger
Color black
Vario Properties 4G/LTE, Bluetooth, FLARM, Color Display, G-Sensor, GPS Receiver, Airspaces, Memory Card Slot (outside), USB Interface
Related links to "Flymaster Live DS"
Read, write and discuss reviews... more
Customer evaluation for "Flymaster Live DS"
Write an evaluation
Evaluations will be activated after verification.
Please enter these characters in the following text field.
I have read the data protection declaration.

The fields marked with * are required.

Folgende Infos zum Hersteller sind verfübar...... more

Flymaster Avionics is focused to the development, design, production and marketing of navigation electronic instruments and software for gliding and ultra-light aviation.

Doing it the right way, in its business, ethics, social and environmental dimensions, creating value for customers, with passion, responsibility, quality and innovation.

All members of Flymaster development team are active pilots, giving them an unequaled understanding of a pilot's needs requirements, they test the instruments themselves actively in cross country and competitions flights.
